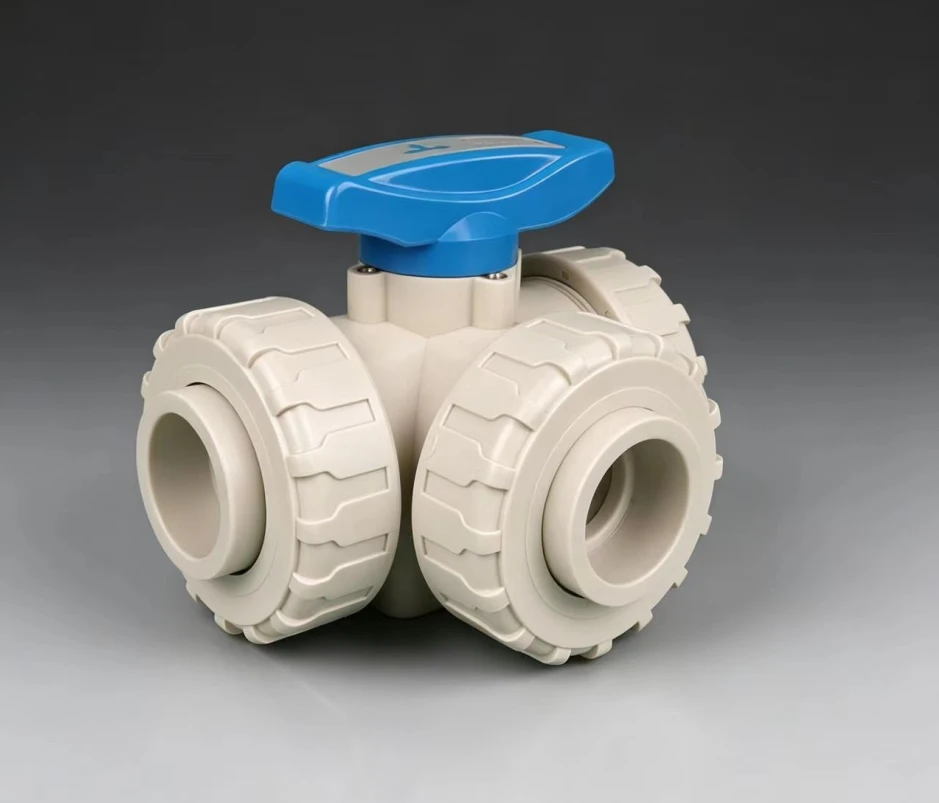

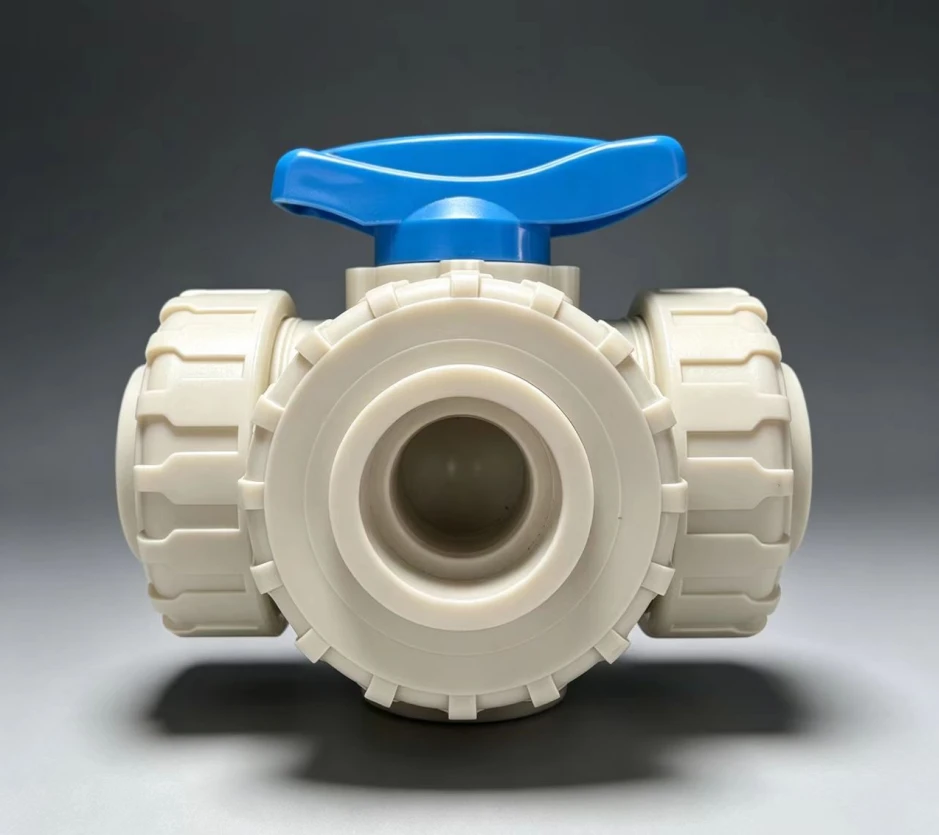

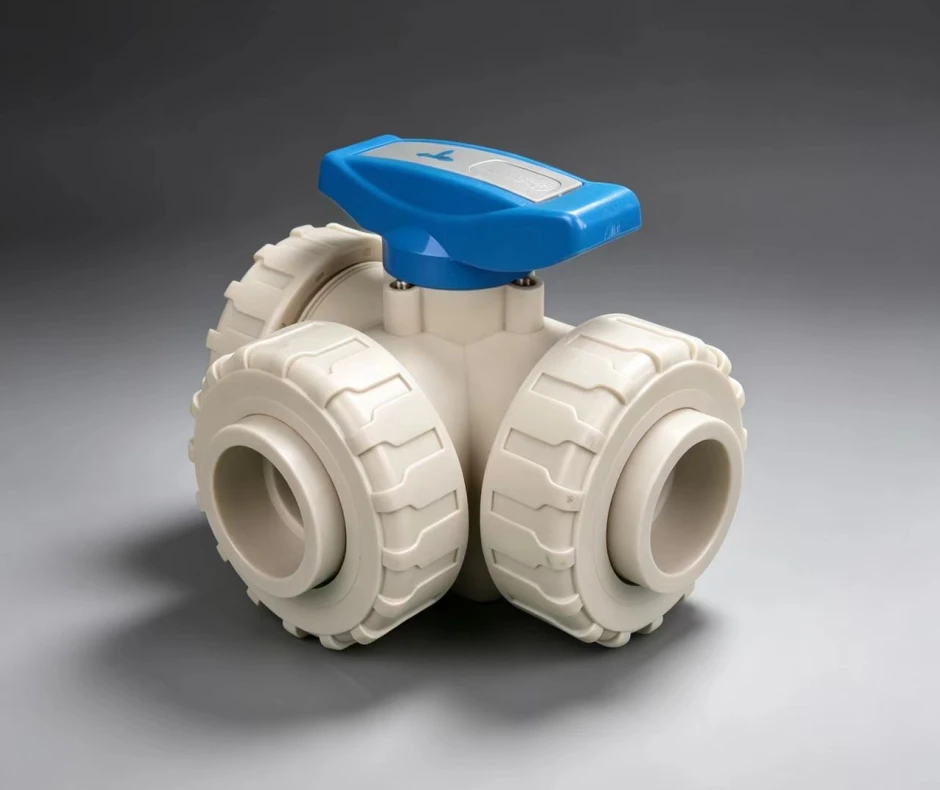

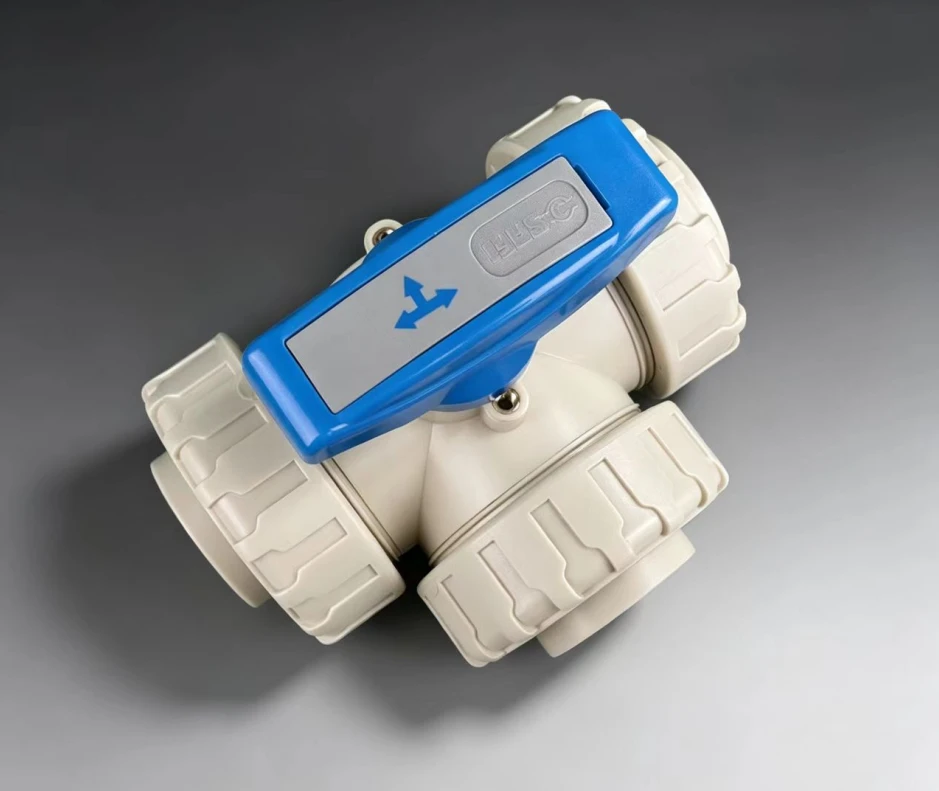

PPH 3-Way Union Ball Valve

Constructed from high-quality industrial modified PPH raw material, this 3-way valve features stable chemical inertness for long-term liquid transportation. The material effectively resists diluted acid, diluted alkali, salt water, and common soft-wash chemical solvents, avoiding corrosion, scaling and body cracking that often occur with ordinary plastic valves in frequent chemical dosing environments. This structural stability extends continuous service life in cyclic fluid delivery scenarios.

This valve is designed for low-pressure industrial piping systems, with a rated working pressure of 1.0MPa at normal temperature. The sustainable working temperature ranges from -10℃ to 80℃. It maintains stable sealing performance and consistent flow control accuracy within the full temperature and pressure range, suitable for long-cycle continuous fluid delivery instead of intermittent short-time use.

Different from traditional single straight-through valves, the integrated three-way flow channel structure realizes one-valve multi-function. It supports L-type and T-type flow switching, enabling fluid diversion, confluence mixing and pipeline direction adjustment in one single unit. In actual engineering piping, this structure reduces the use of 2 to 3 separate ball valves and corresponding elbow fittings, cutting on-site pipeline installation workload by about 30% and simplifying complex multi-branch pipeline layouts.

The valve adopts full union thread connection on both ends, bringing highly convenient on-site assembly and disassembly experience. Workers do not need to cut fixed pipelines or remove adjacent pipe fittings during maintenance. The union nut structure allows independent disassembly of the valve body for internal channel cleaning, seal replacement and foreign matter inspection. This tool-free quick disassembly design greatly reduces system downtime during equipment routine maintenance and troubleshooting.

In terms of flow performance, the smooth integrated molding inner cavity reduces fluid resistance effectively. Under standard DN40 pipe matching conditions, the valve maintains stable flow coefficient, avoiding turbulent flow and pressure drop fluctuation during medium switching. It ensures uniform and controllable liquid output in chemical proportional dosing and liquid mixing systems.

Standard specification covers DN40 (1-1/2 inch) conventional pipeline size, which matches most conventional industrial low-pressure piping standards. For special installation space limitation, non-standard pipe diameter matching and special angle pipeline layout requirements, we provide targeted customized services including special caliber adjustment, personalized body shape processing and directional port angle customization, to solve on-site installation adaptation problems for special projects.

 This PPH three-way valve is widely applied in low-pressure chemical dosing systems, water treatment auxiliary circulation pipelines, building exterior soft wash cleaning fluid distribution, industrial weak corrosive liquid transfer and multi-path liquid mixing projects. In soft wash commercial cleaning projects, it helps contractors switch between cleaning agent and water flushing pipelines rapidly; in water treatment dosing stations, it realizes automatic diversion of medicinal liquid and circulating water, improving overall pipeline operation efficiency and system stability.

For users building complete low-pressure fluid control piping solutions, this three-way PPH valve can be matched with our UPVC series fluid control products to form a complete chemical dosing and pipeline distribution system. View our stable and practical supporting model for reference: Soft Wash Metering Valve
