Electric Avctuated CPVC 3 Way Plug Valve

Electric Avctuated CPVC 3 Way Plug Valve is commonly used in Swimming Pool Spa Systems Chemical Mixing and Dilution process system and Industrial Process Control.

In pool and spa applications, electric actuated pvc 3-way valve are used to control the flow of water to different features, such as pool jets, waterfalls, fountains, and spa jets. electric actuated pvc 3-way valve enable users to switch between these features for enhanced pool and spa experiences.

In chemical handling systems, It can control the mixing and dilution of chemicals, ensuring accurate proportions and consistent results.

Industrial Process Control: electric actuated pvc 3-way valve find use in various industrial processes where it is necessary to divert the flow of fluids, chemicals, or gases between different pipelines or tanks.

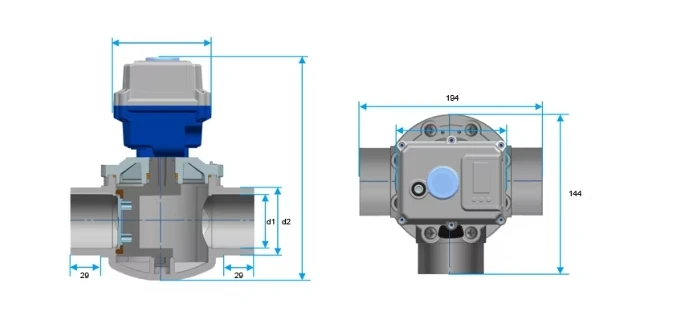

Unit:mm.

FAQ:

Q:Why should we choose CPVC?

A:Significant advantages, CPVC material cost is low, reduce procurement costs; chemical corrosion resistance, in some acid and alkali conditions without additional anticorrosion treatment; light weight, easy to install, small load on the support structure; smooth inner wall, fluid resistance is small, conducive to energy saving and improve the efficiency of the system flow, but pressure and high temperature resistance is inferior to metal valves, need to be weighed on the basis of choice.

Q:What are the applicable media of electric avctuated cpvc 3 way plug valve?
A: Usually applicable to a variety of chemical fluids, such as general acid and alkali solutions (such as hydrochloric acid, sodium hydroxide dilute solution, the concentration of the specific conditions and valve material tolerance), pure water, civil and industrial circulating water, etc., but does not apply to strong oxidizing media (such as high concentration of nitric acid) and some organic solvents (erosion of CPVC material), you need to refer to the product specification of the chemical compatibility charts to confirm accurately.

Q： What is the power requirement of electric actuator?

A: Common power supply specifications are 24V DC (DC), 110V AC (AC), 220V AC, etc., different application scenarios and customer needs will choose different power supply types, when purchasing, you need to choose according to the actual site power supply convenience and control system voltage match, be sure to power supply according to the product nameplate identification, to avoid damage to the equipment.

Q:How long is the warranty period of the product and what does it cover?
A: The warranty period is mostly 1 - 2 years, covering the product material defects lead to leakage, electric actuator motor failure, control component failure and other manufacturing quality problems, but does not include improper installation, over-temperature and over-pressure use, corrosive media erosion beyond the design range of man-made or abnormal conditions triggered by faults, free repair or replacement of faulty parts during the warranty period.

If you are interested in the electric avctuated cpvc 3 way plug valve,please feel free to contact us!
