Pneumatic 3 Way Ball Valve

Pneumatic 3 Way Ball Valve is a ball valve device driven by a pneumatic actuator and has a three-way flow path structure. It is widely used in automated fluid systems that require multi-channel switching.

● HVAC (Heating, Ventilation, and Air Conditioning) systems for controlling the flow of hot and cold water.

● Process control in manufacturing and chemical plants.

● Water and wastewater treatment plants to divert flow for different treatment processes.

● Beverage and food processing for mixing ingredients.

● Pharmaceutical manufacturing for controlling the flow of different fluids.

● General industrial applications where precise control of fluid flow is needed.

• Pneumatic actuator

This product uses the ARC series pneumatic actuator, and the response time can be maintained between 1 and 2 seconds, meeting the needs of industrial systems for rapid control.

• Diverse materials

Pneumatic 3 Way Ball Valve provides four valve body material options: UPVC, PPH, CPVC and PVDF. PVDF material can withstand temperatures up to 140°C and is resistant to strong acid and alkali corrosion, suitable for highly corrosive chemical media; CPVC is suitable for hot water systems at 70°C~100°C; PPH has excellent stability in low temperature and high impact situations.

• Three-way channel structure

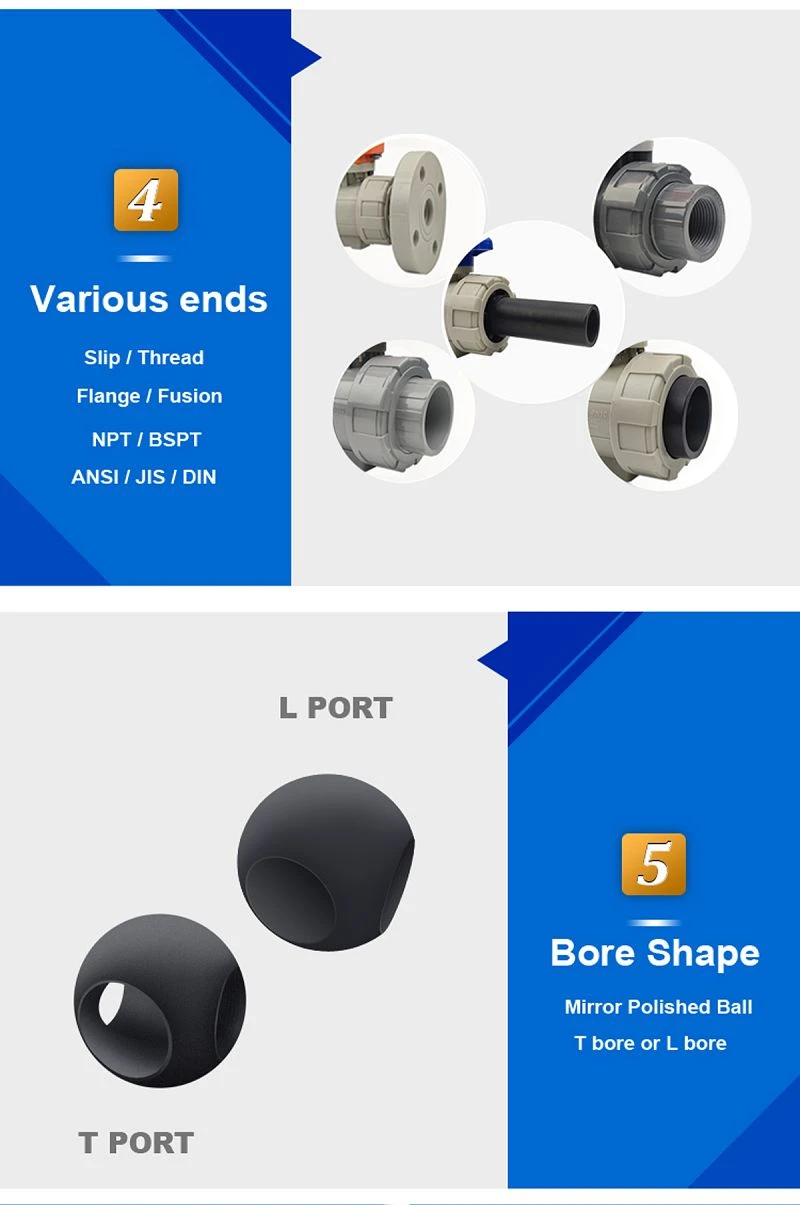

This product adopts an L-type or T-type ball core structure, which can realize flexible switching of the inlet and outlet paths between three directions, and supports diversion, confluence or bypass control. One valve can replace two to three traditional two-way ball valves, simplifying the pipeline design from the structural source.
