Manifolds For Soft Washing System
1.Best quality
2.Reasonable price
3.Patient service
4.Customized service
Description
Products Description
Manifolds For Soft Washing System
1) Heavy-duty design, reliable performance.
2) Floating sealing ball valve, no leakage.
3) Big-spaced precision dial.
4) Viton (FKM/FPM) seal O-ring.
5) ABS handle with visual position indicator.
6) Various body material options adapt for different working applications.
7) Various V bore design, the flow rate adjusting is nearing linear.
Dimension Chart
|
SIZE |
H |
H1 |
H2 |
D |
R |
L |
L1 |
|
DN15-1/2" |
82.5 |
53.0 |
29.5 |
12.8 |
64.4 |
120 |
72.8 |
|
DN20-3/4" |
96.0 |
61.0 |
35 |
19.0 |
64.4 |
135 |
72.8 |
|
DN25-1" |
112.4 |
71.4 |
41 |
24.5 |
64.4 |
150 |
90.0 |
Explosive Chart for metering valve
|
Explosive Chart for metering valve |
|||
| No. | Description | QTY. | Material Options |
| 1 | Handle cap | 1 | ABS |
| 2 | Screw | 1 | Stainless steel |
| 3 | Handle | 1 | ABS |
| 4 | Metering dial | 1 | PP |
| 5 | Ball valve | 1 | CPVC |
customized service
|
|
FPM(Viton) seals Three kinds of handle color options. Heavy-duty handle design |
|
|
V-shaped bore design with good resistance to vibration. |
|
|
Free customized dial lable design. |
|
|
Different color of lable for you to make special remark. |
|
|
Various angle V bore for you to choose. |
Check Valve Section
Why we add check valves in our Manifolds For Soft Washing System?
1.To prote the entire soft washing system and increases the life of the system.
2.Ensure that each channel is independent of the other to protect the pump from damage by backflow water.

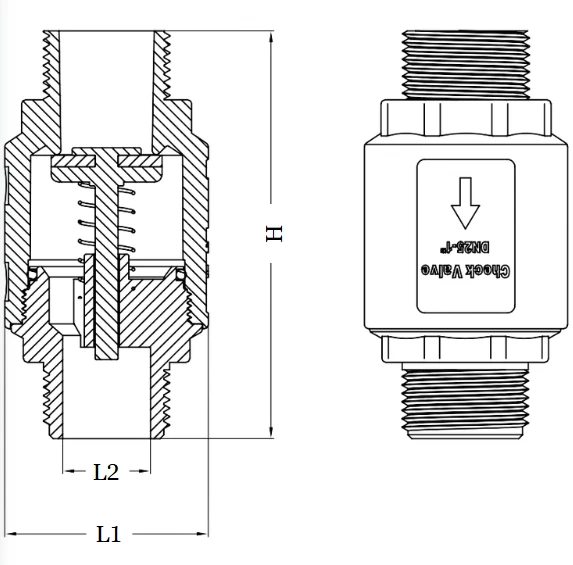

Dimension Chart for check valve
|
Unit:mm |
|||
| size | H | L1 | L2 |
| DN15-1/2" | 73 | 38 | 14 |
| DN20-3/4" | 83 | 49 | 19 |
| DN25-1" | 107 | 53 | 23 |
Explosive Chart for check valve
|
|
|||
| NO | Description | QTY. | Material Option |
| 1 | Spigots | 1 | CPVC/UPVC |
| 2 | O-ring | 1 | FKM/EPDM |
| 3 | Spring | 1 | Hastelloy/SS304 |
| 4 | Shaft | 1 | Hastelloy/SS304 |
| 5 | O-ring | 1 | FKM/EPDM |
| 6 | Valve Body | 1 |
CPVC/UPVC |
Dimension Chart for block
Q&a
Q1:What can this valve be used for?
A1:The manifold can be used in soft washing systems,washing the carpets,car washing,etc.
Q2:What kind of delivery do you ship?
A2:According to the customer's needs: door-to-door; ocean freight; or customer-specified freight forwarder.
Q3:Do you supply directly from factory?
A3:Yes, our factory is located in Qinhuangdao City, Hebei Province, China, we have our own factory, our own research and development team, we can provide you with the best quality products and services and prices.
Q4:How long is your stocking period?
A4:3-15 days.
If you are interested in the manifold for soft washing system,please feel free to contact us!
