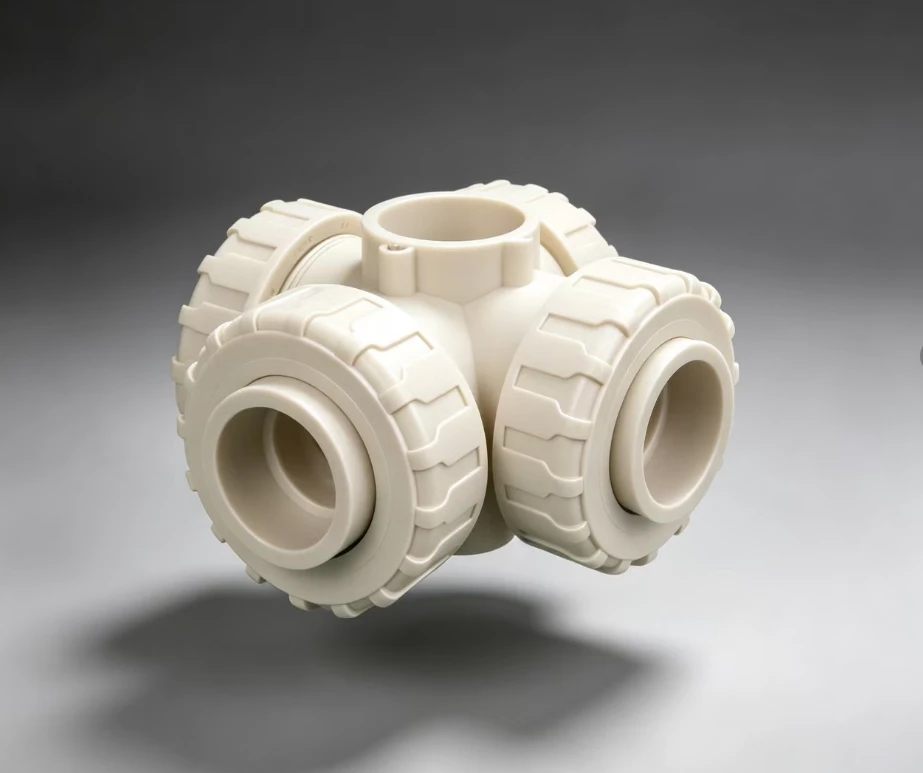

Plastic 3‑Way Mixing Valve True Union Manual Three‑Port Valve For Chemical Dosing Water Treatment

Our Plastic 3‑Way Mixing Valve is a manual three‑way plastic valve for mixing, diverting and switching fluid flows in pipe systems. It works as a compatible companion part for our metering ball valve series. It is widely used on soft‑wash metering units, chemical dosing lines and water‑treatment setups dealing with corrosive liquids.

Adopting a floating‑ball sealing structure, this valve seals reliably to prevent fluid leaks during everyday use. It is built with true‑union end connections. Users can disassemble the valve for checks or regular maintenance, no pipe cutting or modification needed. Its ABS handle has a clear position scale, so site operators can read and adjust flow rates conveniently on location.

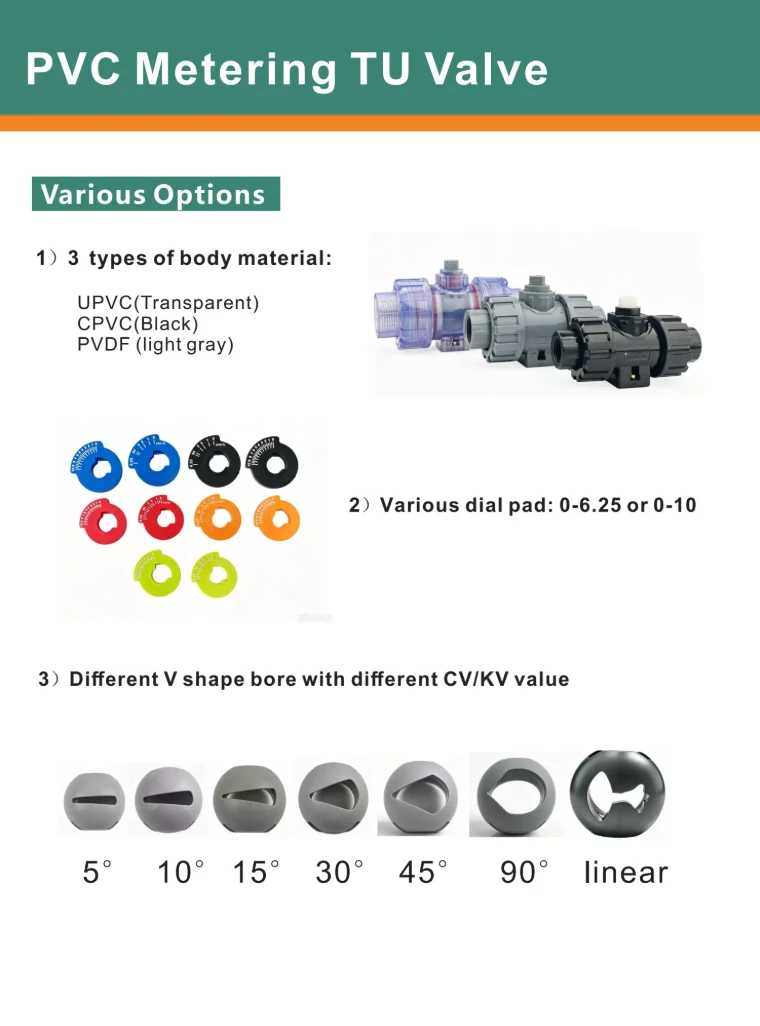

Different projects require different flow behaviours, so we offer replaceable V‑bore ball inserts. You may select a suitable bore profile to match your system's flow curve requirements. We also provide multiple body and seal material options for different corrosive media, making this valve suitable for most general‑purpose industrial environments.

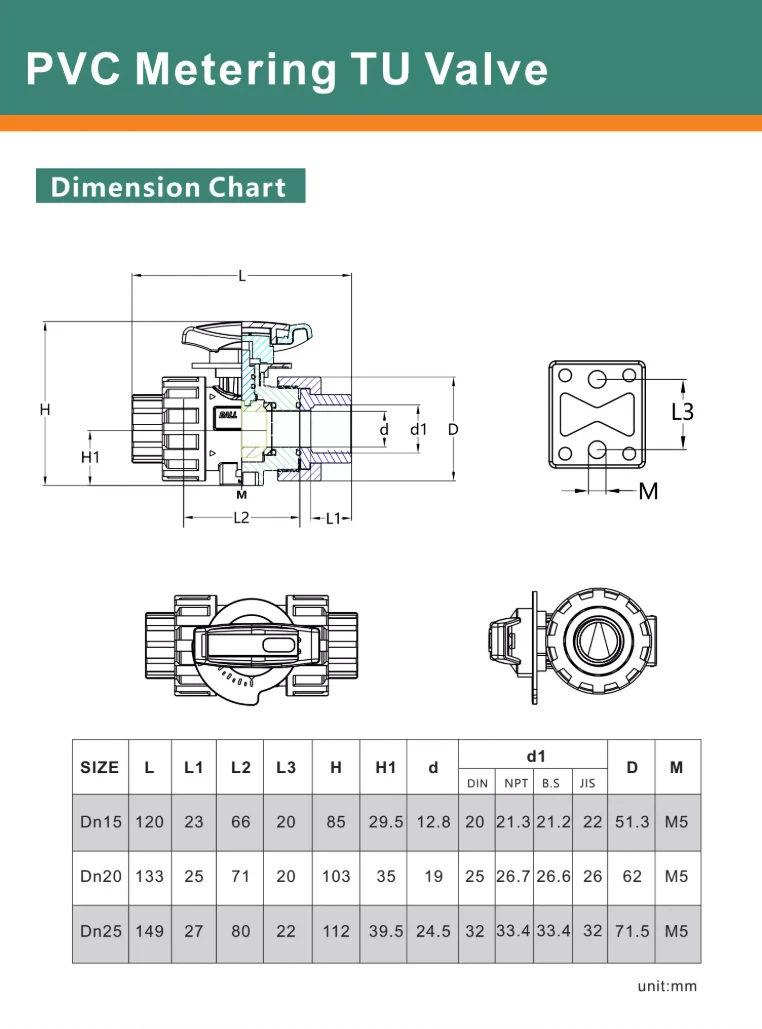

The following are the product materials and specifications:

This valve features robust plastic construction with excellent resistance to acids and alkalis. It utilizes floating ball sealing to maintain zero leakage, while true union connections simplify installation, removal and maintenance. Multiple seal materials are available to accommodate various chemicals, and interchangeable V‑bore balls support different flow characteristics for diverse working conditions.

Our valve can serve for chemical metering and soft‑wash systems, water treatment facilities, industrial circulating pipelines, aquaculture projects, laboratory fluid mixing and corrosive liquid transfer pipelines.
To explore our main product, please click here：Plastic 3-Way Mixing Valve

This plastic 3-way mixing valve doesn't work the same as ordinary two-way ball valves. It comes with a built-in mixing cavity, and we learned these maintenance tips by troubleshooting chemical blending issues directly with our customers. For this three-way design, check both inlet and outlet unions every 4 to 6 months. Keep an eye on the mixing chamber. Chemical residue accumulates here over time and can shift your mixing ratio. A soft wash contractor from Alabama reached out to us after running their blending system for months straight. They told us their chemical mixture came out inconsistent. When they opened the valve, sediment had built up inside the mixing cavity and thrown off flow balance. Cleaning out that chamber fixed the mixing performance. Avoid leaving the valve fixed on one mixing setting for months at a time. Turn the handle all the way back and forth every couple months. The V-port ball insert can seize up if it stays in one position, and that ruins your chemical blend. When flushing connected pipes, only use cleaning products compatible with UPVC. Never use petroleum grease on the ball or seat. One customer used standard oil-based lubricant on this mixing valve. With continuous sodium hypochlorite dosing, the seals swelled and failed suddenly. They had to shut down the full chemical mixing system to carry out part replacement. Inspect stem O-rings and union gaskets during routine service. FKM seals hold up better for many mixed corrosive fluids. EPDM is a solid pick for most diluted bleach mixes. Swap worn seals at the first sign of leaks around joints or the stem. Don't wait until chemicals leak out and create safety risks. If installing this mixing unit outside, fit a cover to block direct UV exposure. Extended sunlight makes plastic turn brittle gradually. This is especially important for valves mounted on mobile soft wash trailers, which sit out in open air on job sites all week.
